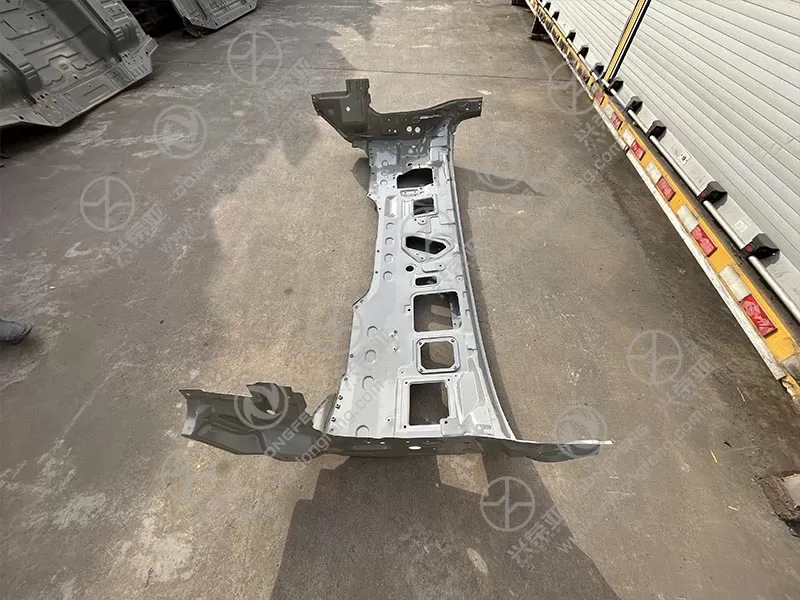

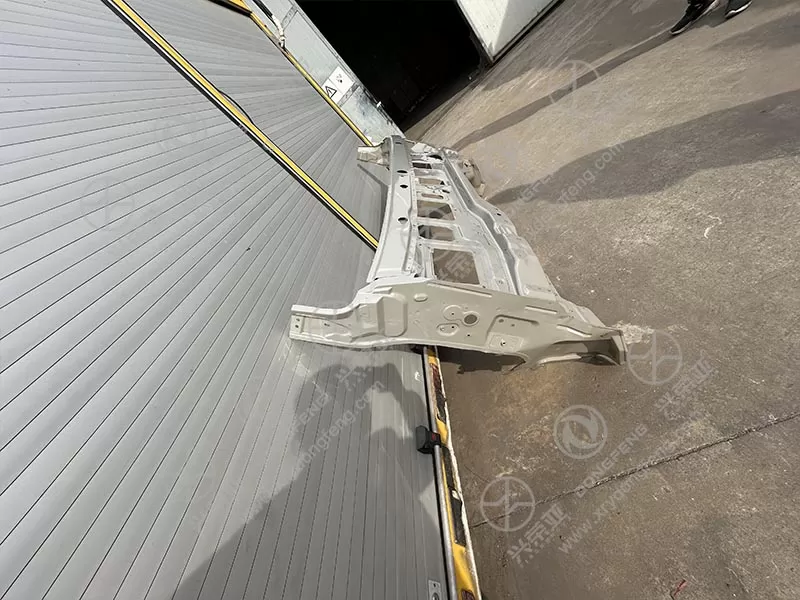

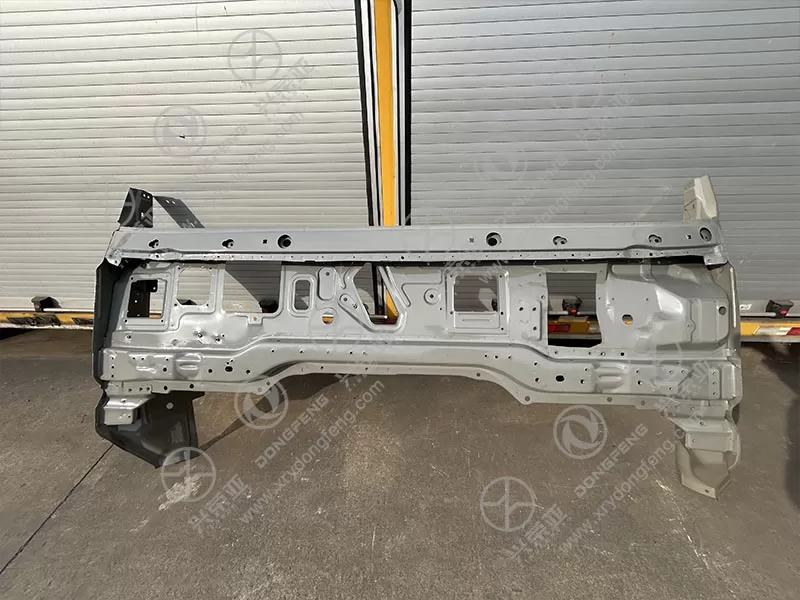

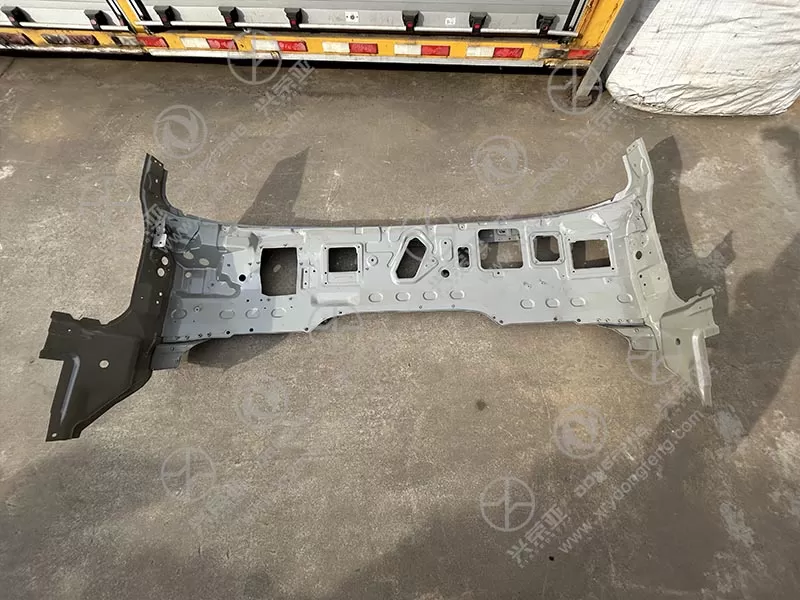

Dongfeng Kinalnd truck parts Front wall welding assembly 5300010-C0100

A core advantage of the 5300010-C0100 assembly is its exceptional structural strength, tailored to Kinland’s heavy-duty operating demands. It is fabricated from Q355B low-alloy high-strength steel (6mm thick for main panels, 8mm for reinforced edges), which delivers a tensile strength of 510MPa and yield strength of 355MPa. This material enables the assembly to withstand 8,000kg static load (e.g., support for cab interior components or engine accessories) and absorb 500J impact force (e.g., from flying debris, gravel, or minor collisions) without deformation. The steel undergoes thermomechanical processing to enhance toughness, preventing brittle fracture in extreme temperatures (-40°C to 80°C)—critical for Kinland trucks operating in diverse climates. For vehicles hauling heavy cargo or navigating rough terrain, this strength ensures the front wall protects internal components (e.g., engine, electrical systems) from external damage, extending their service life

The 5300010-C0100 assembly features industrial-grade welding to guarantee durable performance. It adopts gas metal arc welding (GMAW, MIG) with ER50-6 low-carbon steel wire, creating weld seams with a shear strength of 340MPa—matching the base steel’s strength to eliminate weak points. Each weld joint (total length 9,000mm) undergoes 100% ultrasonic testing to detect internal defects (porosity, cracks) that could lead to joint failure under vibration or load. Weld edges are ground smooth to reduce stress concentration and prevent corrosion buildup, while 3D laser positioning (accuracy ±0.3mm) during welding ensures all reinforcing ribs, mounting brackets, and component attachment points align perfectly with the truck’s original layout. This precision ensures the assembly maintains structural integrity even after years of road vibration, heavy use, or temperature changes, extending its service life to 10+ years

Built to withstand harsh operating conditions, the 5300010-C0100 assembly boasts a robust anti-corrosion system. First, it undergoes phosphatization treatment (5-8μm zinc phosphate layer) to improve coating adhesion and block initial rust formation. Next, it receives an electrophoretic coating (E-coat, 25μm) that covers all surfaces—including hidden weld gaps, bracket inner cavities, and reinforcing rib channels—to prevent under-film corrosion (a common failure point for generic front walls). A final layer of polyurethane topcoat (30μm, gloss 60±5%) adds scratch resistance and UV protection, avoiding paint fading or chalking in prolonged sunlight. This multi-layer system passes 1,500-hour salt spray tests, ensuring the assembly remains rust-free even in coastal regions (high humidity), winter environments (road salt), or construction zones (industrial dust). For fleet operators, this protection minimizes maintenance costs and avoids premature replacement due to corrosion

The 5300010-C0100 assembly is designed for efficient installation, reducing Kinland truck downtime. It comes pre-welded with all necessary components—including support brackets, component mounting points, and seal grooves—and pre-drilled mounting holes that align perfectly with the truck’s factory front wall framework. The package includes 10.9-grade high-strength bolts (with lock washers) that match Kinland’s factory torque specifications (200-220 N·m), ensuring secure attachment without custom hardware. Installation takes 4-6 hours for a two-person team using standard tools (torque wrenches, impact drivers), and a detailed manual (with 3D assembly diagrams and alignment marks) guides precise fitting to ensure compatibility with adjacent parts (e.g., front cover, headlights, radiator). Unlike custom-fabricated alternatives that require on-site welding or cutting, this OEM assembly ensures a perfect first-time install—getting Kinland trucks back on the road faster for time-sensitive tasks like freight delivery, construction work, or logistics operations
