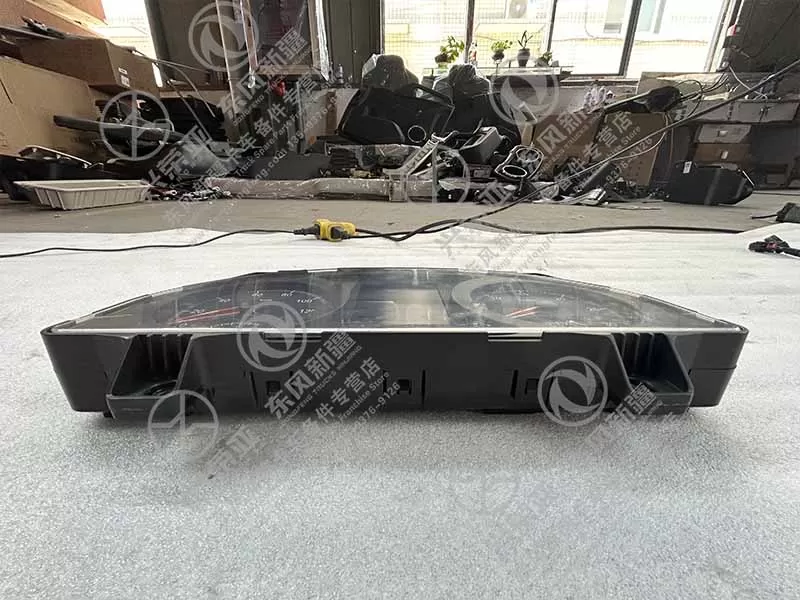

Dongfeng Xinjiang truck spare parts instrument 3801040-T5WF03S

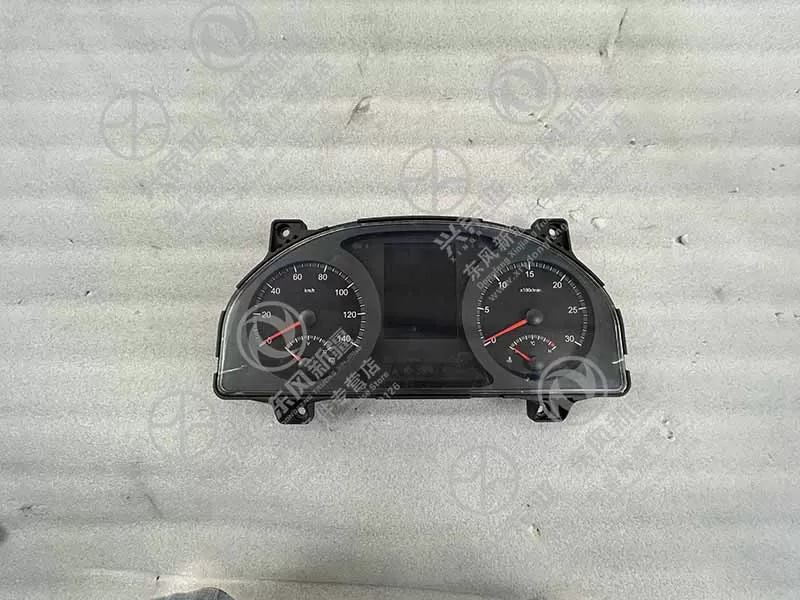

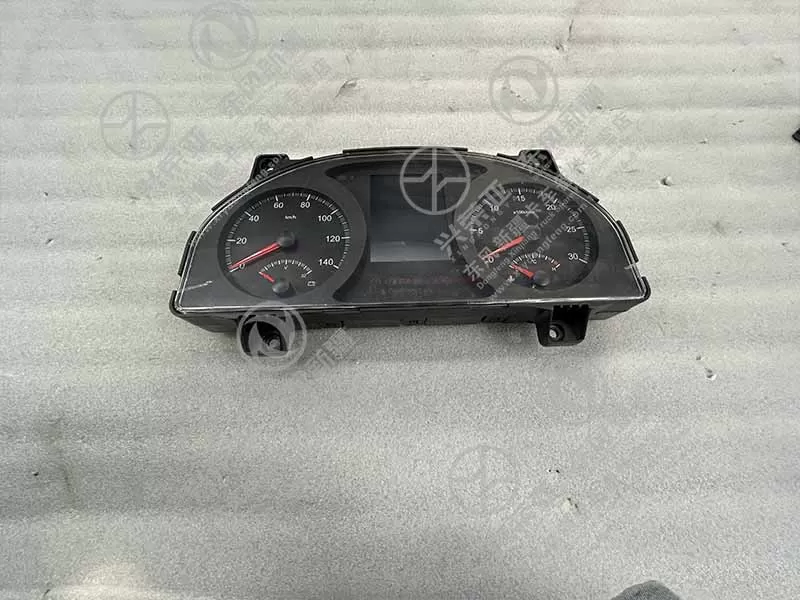

Built to provide drivers with full visibility of vehicle performance, this instrument integrates a multi-functional display system covering critical truck data. It features a 4.3-inch TFT color screen (480×272 resolution) that shows real-time parameters: engine speed (0-3000 RPM), vehicle speed (0-120 km/h), fuel level (0-100%), engine coolant temperature (40-120℃), and oil pressure (0-10 bar). Analog gauges (engine speed and speedometer) with LED backlighting (adjustable brightness) ensure clear visibility in both daylight and night driving. Additionally, it displays warning indicators for faults like low brake fluid, high engine temperature, and tire pressure loss—triggering audible alerts (60dB) to prompt immediate driver action. The instrument also supports trip data tracking (distance, average fuel consumption, driving time), helping drivers optimize fuel efficiency and plan maintenance schedules. This comprehensive data display enhances driving safety and reduces the risk of unexpected breakdowns

Designed for ease of use in heavy-duty truck environments, the instrument features an intuitive operation system optimized for drivers wearing gloves. It includes 5 physical pushbuttons (located on the right side of the bezel) with large, raised surfaces (15mm diameter) that allow easy tactile identification—no need for visual confirmation. These buttons control functions like screen brightness adjustment, trip data reset, and menu navigation (access to vehicle settings, fault history). The TFT screen’s interface uses large, high-contrast icons (18mm minimum size) and simplified menus that require only 2-3 button presses to access key functions. For added convenience, the instrument supports steering wheel control integration (compatible with Dongfeng Xinjiang’s OE steering wheel buttons), allowing drivers to adjust settings without taking hands off the wheel. This user-friendly design minimizes driver distraction and improves focus during long-haul trips

Engineered to withstand the tough conditions of truck operation—including road vibration, extreme temperatures, and cab dust—the instrument meets strict durability standards for commercial vehicles. Its housing is made of flame-retardant ABS plastic (UL94 V-0 rating) with a reinforced frame, resisting impact from vibration (tested to 5-2000Hz, compliant with ISO 16750-3) and minor shocks. The internal electronic components are rated for a wide temperature range (-30℃ to 70℃), ensuring stable performance in freezing winters (e.g., northern China) and hot summers (e.g., southern deserts). The instrument’s front panel is IP54-rated for dust and water resistance, preventing damage from cab dust or accidental spills (e.g., coffee, cleaning fluids). Additionally, the TFT screen uses a scratch-resistant Gorilla Glass layer (2mm thick), avoiding wear from frequent cleaning or accidental contact with gloves. These features ensure the instrument maintains functionality for over 6 years, even in off-road or construction-site driving conditions

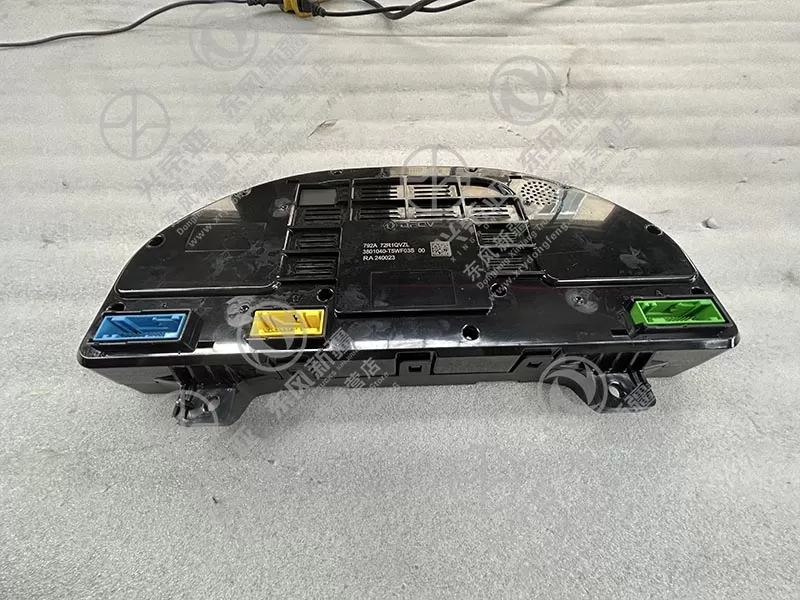

Designed for efficient installation, the instrument comes with a pre-assembled wiring harness and mounting hardware (4 M5×12 self-tapping screws, foam gaskets for vibration damping). The harness includes color-coded wires and clear labels (e.g., “CAN Bus,” “Power,” “Warning Lights”), simplifying connection to the truck’s electrical system. Installation steps are straightforward: remove the old instrument by unscrewing the dashboard bezel, align the new unit with the mounting brackets, secure with screws, and plug in the wiring harness—no specialized tools or electrical expertise are needed. A professional technician can complete the process in 35 minutes or less. The instrument also supports firmware updates via USB (a hidden USB port on the back), allowing users to fix bugs or add new features without visiting a service center. For post-sale support, it includes a 2-year warranty covering manufacturing defects, providing peace of mind for Dongfeng Xinjiang truck owners
