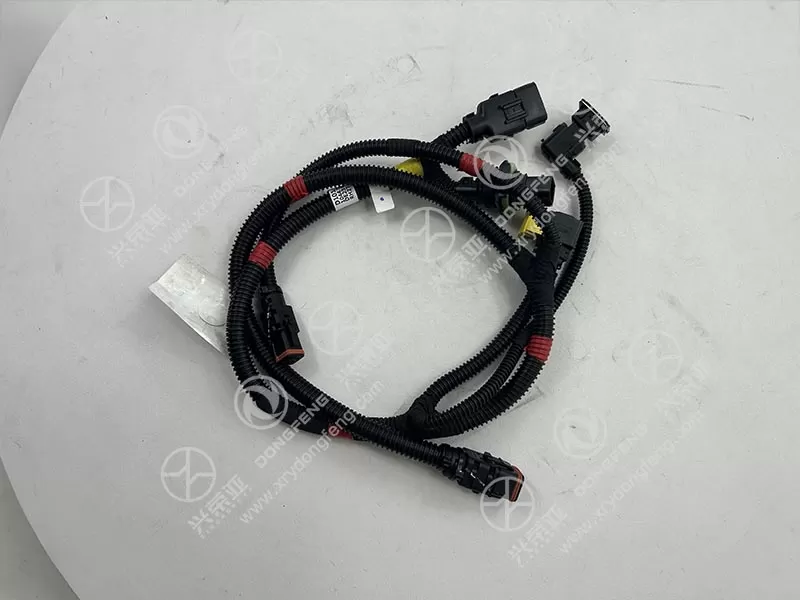

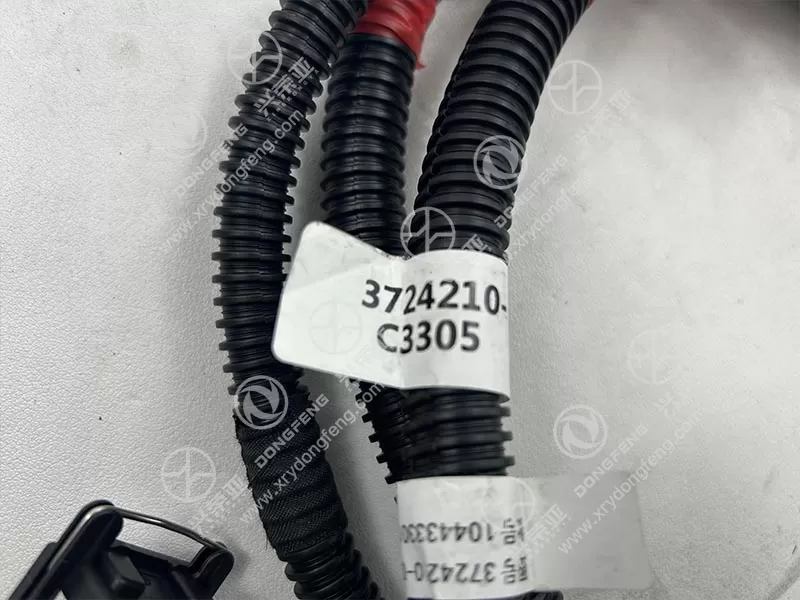

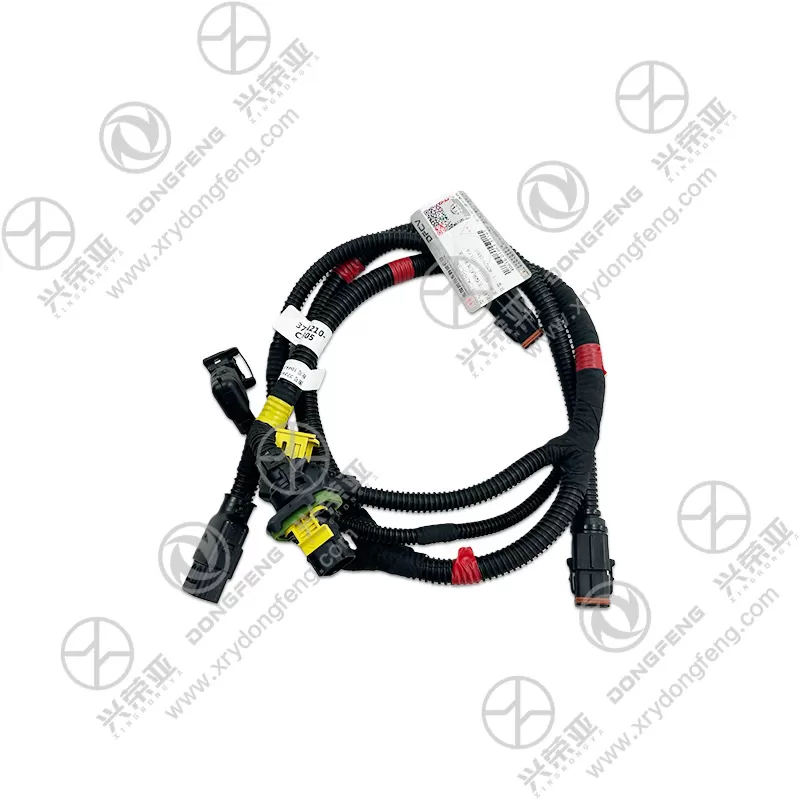

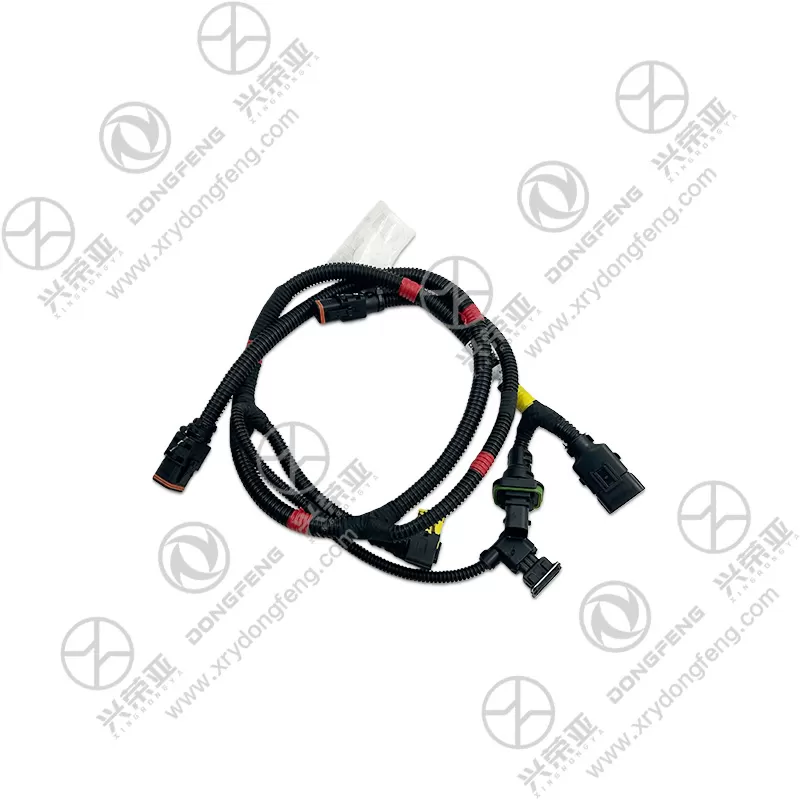

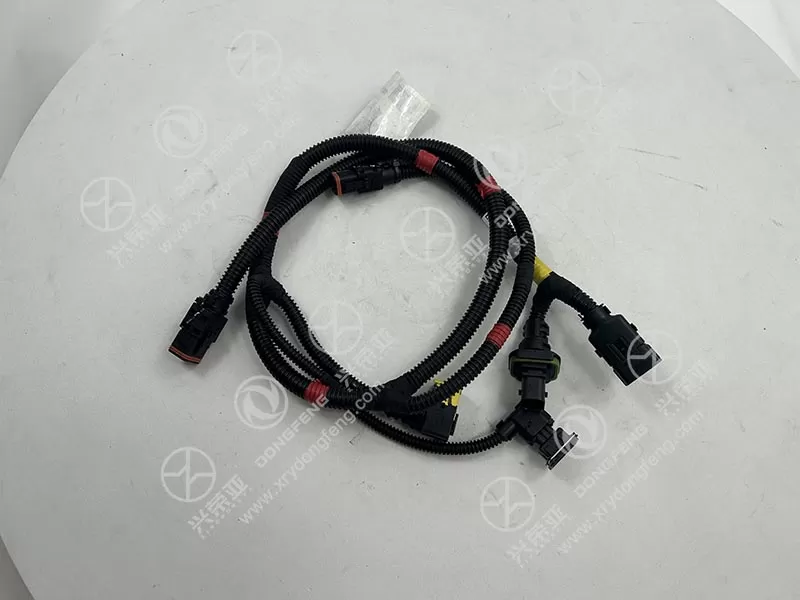

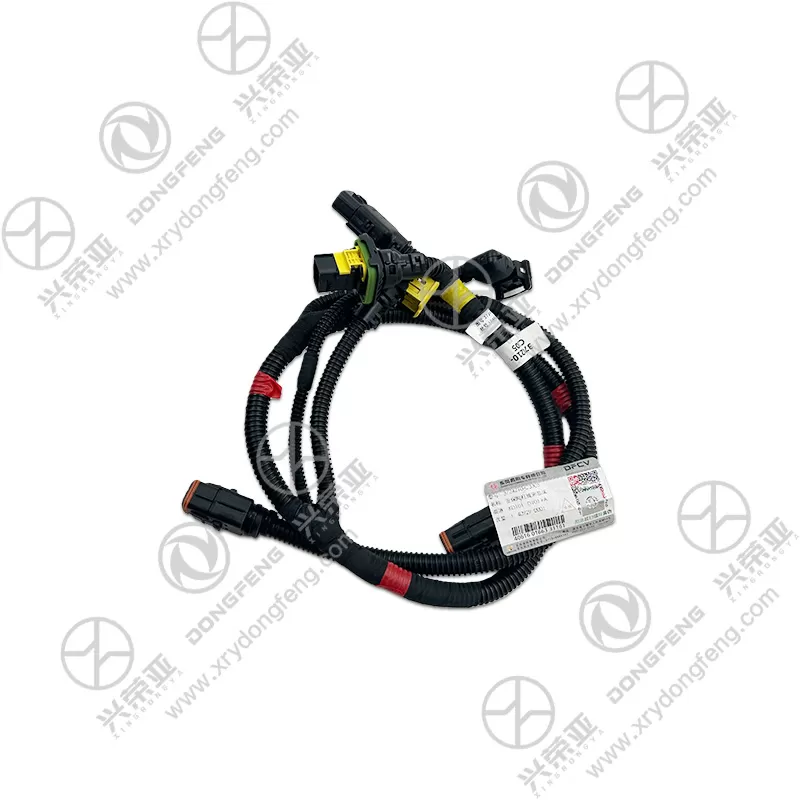

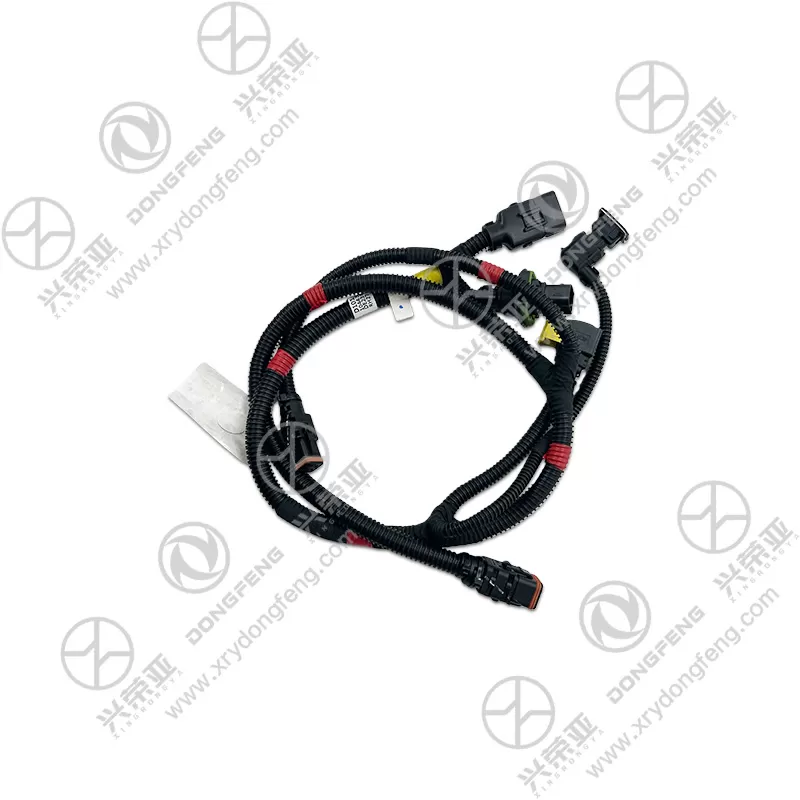

Dongfeng KL truck parts Left bumper harness assembly 3724210-C3305

Built as the core connection for left bumper electrical devices, this harness features high-precision wiring to guarantee stable signal and power transmission. It uses high-purity oxygen-free copper (OFC) conductors with cross-sectional areas ranging from 0.3mm² (signal wires) to 2.0mm² (power wires), achieving conductivity ≥98% IACS and minimizing voltage drop (≤0.05V/m). Signal wires for parking sensors are twisted in pairs (twist pitch 18mm) and shielded with tinned copper braid, reducing electromagnetic interference (EMI) by 70% to avoid false detection. Power wires for fog lights (2.0mm²) are equipped with 10A fuses to prevent overloading. The harness’s branch design follows the left bumper’s internal structure, with pre-fixed lengths that eliminate redundant wiring and ensure a neat layout

Engineered to endure the harsh conditions of the truck’s front end (exposed to impact, rain, and road debris), the 3724210-C3305 harness features a robust protective design. The main harness is wrapped in a double-layer structure: an inner corrugated nylon tube for flexibility and an outer abrasion-resistant polyester sleeve (density 20×20 strands/cm²) for impact protection. Critical sections near the bumper edge use a metal conduit to withstand accidental collisions with stones or curbs. All wires are insulated with flame-retardant PVC (UL94 V-0 grade, 1.0mm thickness) that resists diesel fuel, cleaning agents, and high temperatures up to 125℃. Reinforced strain relief at connector ends prevents wire breakage caused by bumper vibration (10-500Hz)

Optimized to perform in diverse harsh environments, the harness integrates comprehensive weatherproof and anti-corrosion features. All connectors are IP68-rated, with silicone rubber seals that block water and dust ingress—passing 1500-hour neutral salt spray testing (ASTM B117) with no corrosion. Terminals are made of tin-plated brass (5μm thickness) with a locking mechanism, ensuring secure contact even in high-humidity or coastal areas. The outer polyester sleeve is UV-stabilized, preventing brittleness and fading from long-term sun exposure. The harness operates stably within a temperature range of -40℃ to 120℃, adapting to frigid northern winters and sun-exposed front bumpers in desert regions. These features avoid short circuits caused by moisture, a common issue with aftermarket harnesses

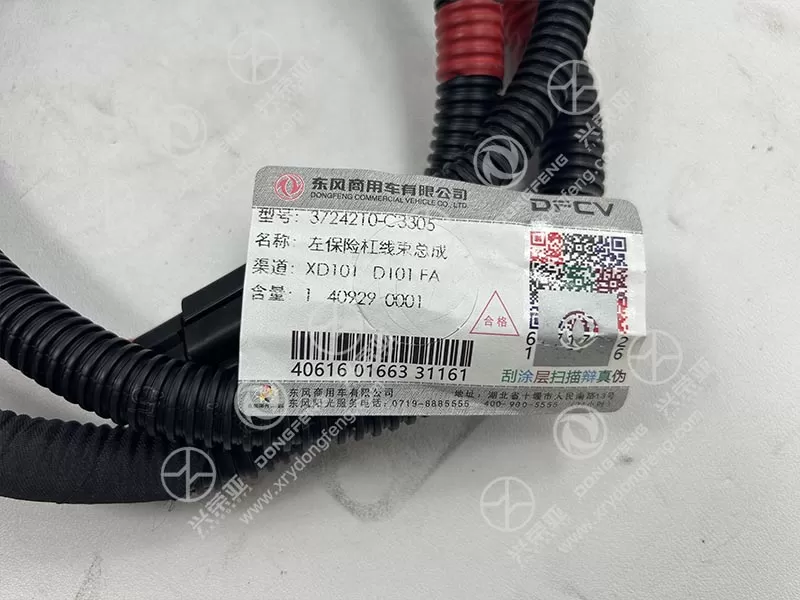

This left bumper harness assembly is designed for efficient installation and long-term cost savings for Dongfeng KL operators. Pre-assembled connectors and clear labels (e.g., “Left Fog Light,” “Parking Sensor”) allow a single technician to complete replacement in 1.5 hours—50% faster than custom-wired solutions. The OE-compatible design ensures perfect integration with the BCM, avoiding electrical malfunctions (e.g., non-functional turn signals, parking sensor errors) that lead to regulatory fines ($200+ per violation). The high-durability components extend the harness’s service life to ≥300,000km—three times that of non-OE alternatives—reducing replacement frequency. By ensuring reliable operation of safety-related components (e.g., turn signals), it reduces accident risks and repair costs (average bumper electrical system repair costs $500+). Backed by a 2-year/200,000km Dongfeng warranty, it provides predictable maintenance expenses for fleet operations
